HELICAL

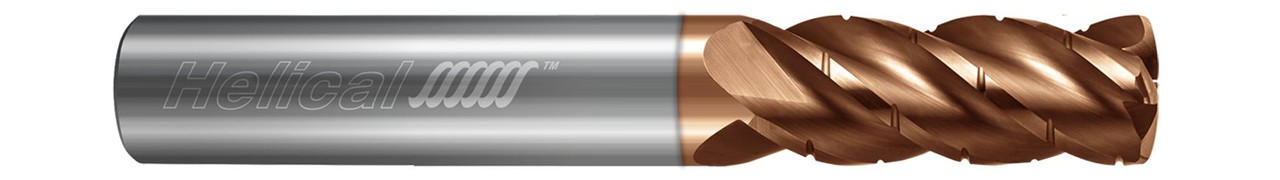

4 FL - Feed Mill - 0.1875" (3/16) Cutter DIA x 0.1875" (3/16) Shank DIA x 0.0150" (1/64) Radius x 0.3125" (5/16) LOC x 2.0000" (2) OAL - TPLUS Coated
- SKU:
- HELSO1-84471
- MPN:
- 84471
- Shipping:
- Calculated at Checkout
Description
0.1875" (3/16) Cutter DIA x 0.1875" (3/16) Shank DIA x 0.0150" (1/64) Radius x 0.3125" (5/16) Length of Cut x 2.0000" (2) Overall Length Carbide Combination Feed & HEM End Mill, 4 Flutes, TPLUS Coated - (HEVF-C-016-40187)
View AllClose
Additional Information
Cutter Diameter: |
0.1875" (3/16) |
Length of Cut: |
0.3125" (5/16) |
Overall Length: |
2.0000" (2) |
Corner Radius: |
0.0150" (1/64) |
Theoretical Radius: |
0.0235" |
Radius: |
0.1688" |
Flutes: |
4 |
LOC Multiple: |
(1.6x) |
Shank Diameter: |
0.1875" (3/16) |
Metric: |
N |
Shank Length: |
1.6875" (1-11/16) |
Coating: |
TPLUS |
Center Cutting: |
N |
Chip Breaker: |
Y |
Weldon Flat: |
N |
Coolant Through: |
N |
