Standard-Threading Tools-UN Threads-Single Point-R
All products in this category
-
RIGHT HAND - 0.3200" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0870" TOOTH WIDTH X 0.0750" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #12-32,IT-320750
MICRO 100
$102.350.3200" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0870" TOOTH WIDTH X 0.0750" PROJECTION X 0.3750" (3/8) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #12-32 - CARBIDE UN THREAD...MIC100-IT-320750$102.35 -
RIGHT HAND - 0.2900" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0810" TOOTH WIDTH X 0.0700" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #14-40,IT-290750
MICRO 100
$78.750.2900" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0810" TOOTH WIDTH X 0.0700" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #14-40 - CARBIDE UN THREAD...MIC100-IT-290750$78.75 -
RIGHT HAND - 0.2300" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0640" TOOTH WIDTH X 0.0550" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #20-48,IT-230600
MICRO 100
$78.750.2300" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0640" TOOTH WIDTH X 0.0550" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #20-48 - CARBIDE UN THREAD RIGHT...MIC100-IT-230600$78.75 -
RIGHT HAND - 0.1800" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0460" TOOTH WIDTH X 0.0400" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #27-56,IT-180500
MICRO 100
$62.850.1800" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0460" TOOTH WIDTH X 0.0400" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #27-56 - CARBIDE UN THREAD...MIC100-IT-180500$62.85 -
RIGHT HAND - 0.3600" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0980" TOOTH WIDTH X 0.0850" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #11-28,IT-360750
MICRO 100
$102.350.3600" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0980" TOOTH WIDTH X 0.0850" PROJECTION X 0.3750" (3/8) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #11-28 - CARBIDE UN THREAD...MIC100-IT-360750$102.35 -
RIGHT HAND - 0.2000" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0520" TOOTH WIDTH X 0.0450" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #24-56,IT-200600
MICRO 100
$62.850.2000" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0520" TOOTH WIDTH X 0.0450" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #24-56 - CARBIDE UN THREAD RIGHT...MIC100-IT-200600$62.85 -

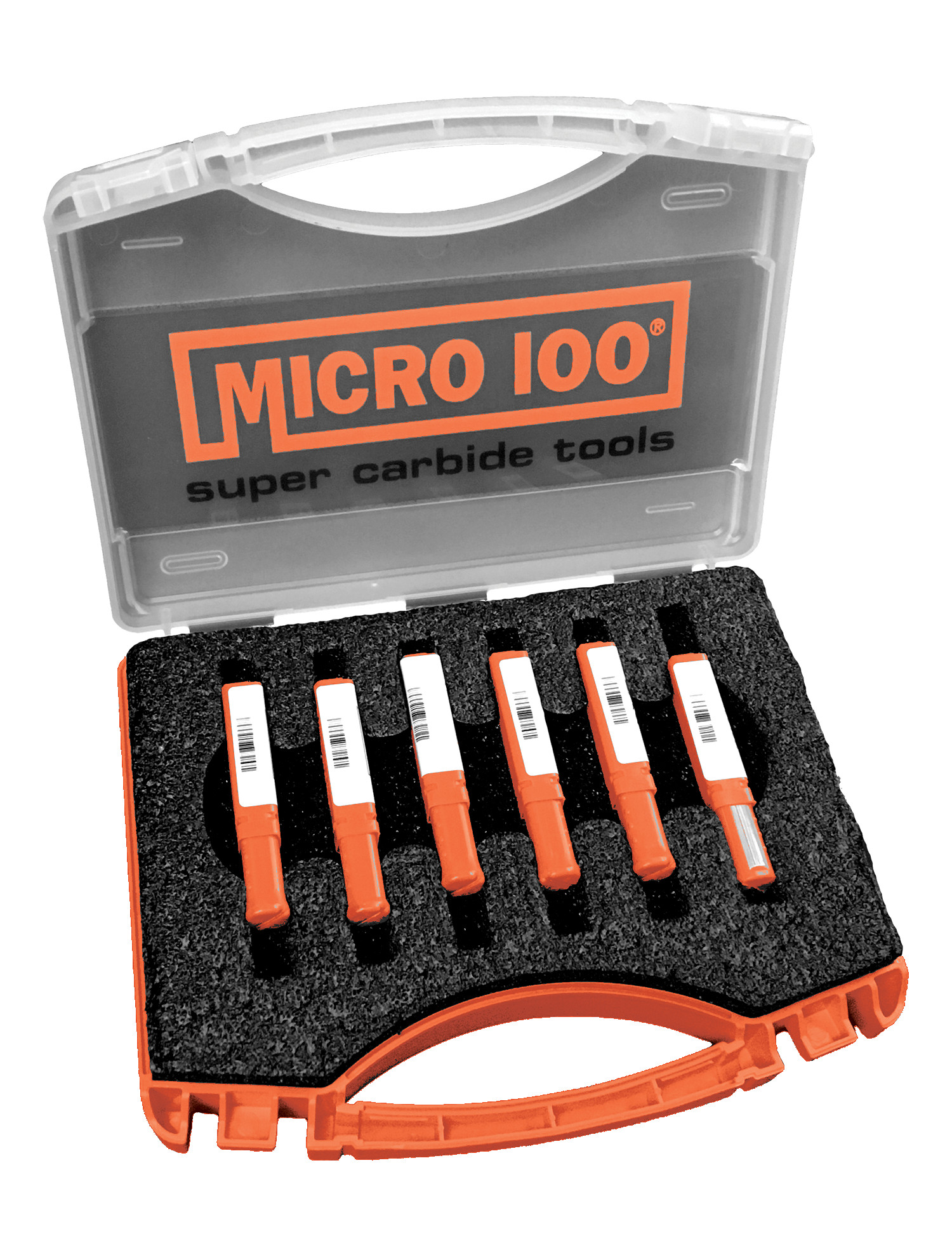

THREADING TOOLS - UN THREADS - SINGLE POINT - RIGHT HAND - 6 PIECE SET,IT-1
MICRO 100
$477.50THREADING TOOLS - UN THREADS - SINGLE POINT - RIGHT HAND - 6 PIECE SET,IT-1MIC100-IT-1$477.50
