HELICAL

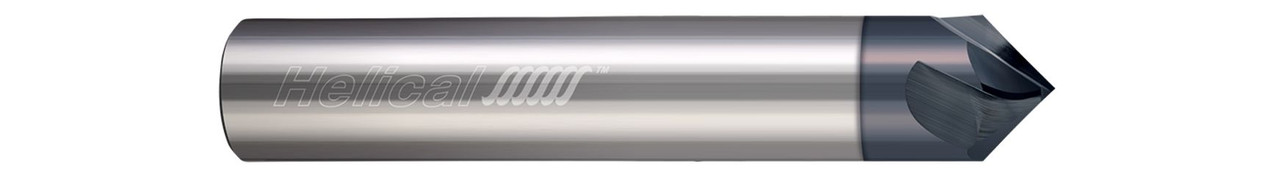

0.6250" (5/8) Shank DIA x 120¡ Included Angle - 4 Helical FL - APLUS Coated
- SKU:
- HELSO1-88815
- MPN:
- 88815
- Shipping:
- Calculated at Checkout
Description
0.6250" (5/8) Shank DIA x 120¡ Included Angle x 3.0000" (3) Overall Length x 0.0100" Tip DIA Carbide Chamfer Mill, 4 Helical Flutes, APLUS Coated - (HPCM120-40625)
View AllClose
Additional Information
Cutter Diameter: |
0.6250" (5/8) |
Length of Cut: |
0.1780" |
Overall Length: |
3.0000" (3) |
Tip: |
0.0100" |
Included Angle: |
120 |
Flutes: |
4 |
Shank Diameter: |
0.6250" (5/8) |
Metric: |
N |
Shank Length: |
2.8220" |
Coating: |
APLUS |
Center Cutting: |
Y |
Chip Breaker: |
N |
Weldon Flat: |
N |
Coolant Through: |
N |
