HELICAL

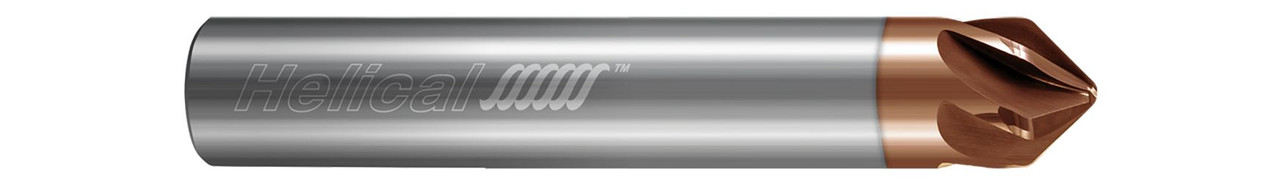

6 FL - Taper - 0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 27.0000" Major Radius x 0.0469" (3/64) Tip Radius x 0.1875" (3/16) Corner Radius x 0.3281" (21/64) LOC x 2.5000" (2-1/2) OAL - TPLUS Coated
- SKU:
- HELSO1-86339
- MPN:
- 86339
- Shipping:
- Calculated at Checkout
Description
0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 27.0000" Major Radius x 0.0469" (3/64) Tip Radius x 0.1875" (3/16) Corner Radius x 0.3281" (21/64) Length of Cut x 2.5000" (2-1/2) Overall Length Carbide Taper Multi-Axis Finisher for Stainless and High Temp, 6 Flutes, TPLUS Coated - (HMAF-FE-60375-12-T30)
View AllClose
Additional Information
Cutter Diameter: |
0.3750" (3/8) |
Length of Cut: |
0.3281" (21/64) |
Overall Length: |
2.5000" (2-1/2) |
Corner Radius: |
0.1875" (3/16) |
Radius: |
27.0000" |
Tip Radius: |
0.0469" (3/64) |
Included Angle: |
60 |
Flutes: |
6 |
LOC Multiple: |
(0.8x) |
Benefit Multiple: |
12x |
Shank Diameter: |
0.3750" (3/8) |
Metric: |
N |
Shank Length: |
2.1719" (2-11/64) |
Coating: |
TPLUS |
Center Cutting: |
Y |
Chip Breaker: |
N |
Weldon Flat: |
N |
Coolant Through: |
N |
