HELICAL

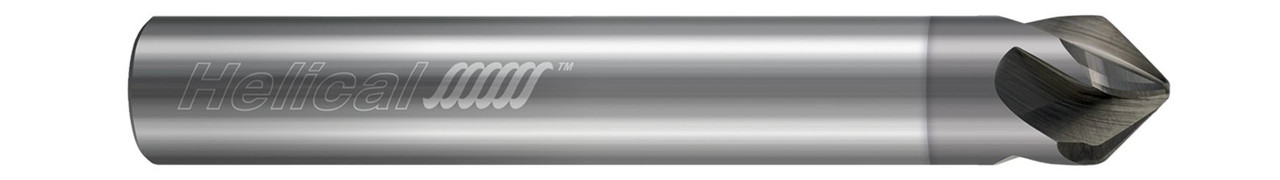

4 FL - Taper - 0.2500" (1/4) Cutter DIA x 0.2500" (1/4) Shank DIA x 8.0000" (8) Major Radius x 0.0625" (1/16) Tip Radius x 0.0313" Corner Radius x 0.1121" LOC x 2.0000" (2) OAL - NPLUS Coated
- SKU:
- HELSO1-86273
- MPN:
- 86273
- Shipping:
- Calculated at Checkout
Description
0.2500" (1/4) Cutter DIA x 0.2500" (1/4) Shank DIA x 8.0000" (8) Major Radius x 0.0625" (1/16) Tip Radius x 0.0313" Corner Radius x 0.1121" Length of Cut x 2.0000" (2) Overall Length Carbide Taper Multi-Axis Finisher for Aluminum, 4 Flutes, NPLUS Coated - (HMAF-AL-40250-08-T45)
View AllClose
Additional Information
Cutter Diameter: |
0.2500" (1/4) |
Length of Cut: |
0.1121" |
Overall Length: |
2.0000" (2) |
Corner Radius: |
0.0313" |
Radius: |
8.0000" (8) |
Tip Radius: |
0.0625" (1/16) |
Included Angle: |
90 |
Flutes: |
4 |
LOC Multiple: |
(0.5x) |
Benefit Multiple: |
8x |
Shank Diameter: |
0.2500" (1/4) |
Metric: |
N |
Shank Length: |
1.8750" (1-7/8) |
Coating: |
NPLUS |
Center Cutting: |
Y |
Chip Breaker: |
N |
Weldon Flat: |
N |
Coolant Through: |
N |
