HELICAL

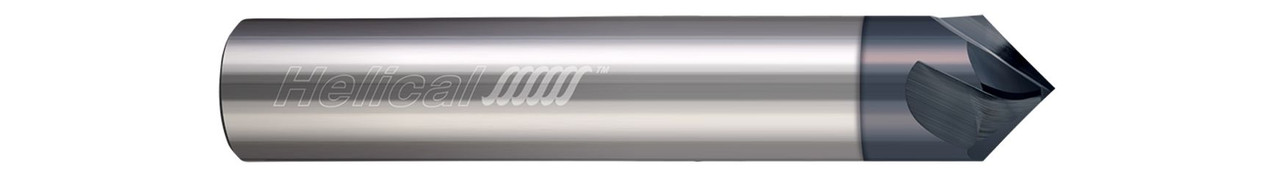

0.1250" (1/8) Shank DIA x 90¡ Included Angle - 4 Helical FL - APLUS Coated
- SKU:
- HELSO1-83800
- MPN:
- 83800
- Shipping:
- Calculated at Checkout
Description
0.1250" (1/8) Shank DIA x 90¡ Included Angle x 1.5000" (1-1/2) Overall Length X 0.0100" Tip DIA Carbide Chamfer Mill, 4 Helical Flutes, APLUS Coated - (HPCM90-40125)
View AllClose
Additional Information
Cutter Diameter: |
0.1250" (1/8) |
Length of Cut: |
0.0580" |
Overall Length: |
1.5000" (1-1/2) |
Tip: |
0.0100" |
Included Angle: |
90 |
Flutes: |
4 |
LOC Multiple: |
(0.4x) |
Web Thickness: |
0.0100" |
Shank Diameter: |
0.1250" (1/8) |
Metric: |
N |
Shank Length: |
1.4420" |
Coating: |
APLUS |
Center Cutting: |
N |
Chip Breaker: |
N |
Weldon Flat: |
N |
Coolant Through: |
N |
