HELICAL
0.1875" (3/16) Shank DIA x 90¡ Included Angle - 2 FL - APLUS Coated
- SKU:
- HELSO1-06033
- MPN:
- 06033
- Shipping:
- Calculated at Checkout
Description

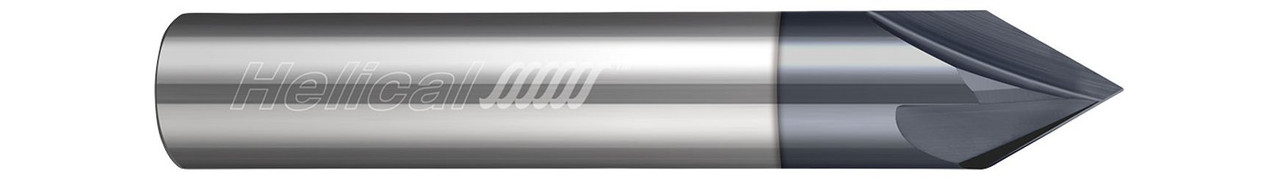

0.1875" (3/16) Shank DIA x 90¡ Included Angle x 2.0000" (2) Overall Length X 0.0180" Tip DIA Carbide Chamfer Mill, 2 Flutes, APLUS Coated - (HCM90-20187)
View AllClose
Additional Information
Cutter Diameter: |
0.1875" (3/16) |
Length of Cut: |
0.0930" (3/32) |
Overall Length: |
2.0000" (2) |
Tip: |
0.0180" |
Included Angle: |
90 |
Flutes: |
2 |
LOC Multiple: |
(0.4x) |
Web Thickness: |
0.0150" (1/64) |
Shank Diameter: |
0.1875" (3/16) |
Metric: |
N |
Shank Length: |
1.9070" |
Coating: |
APLUS |
Center Cutting: |
Y |
Chip Breaker: |
N |
Weldon Flat: |
N |
Coolant Through: |
N |
