MICRO 100

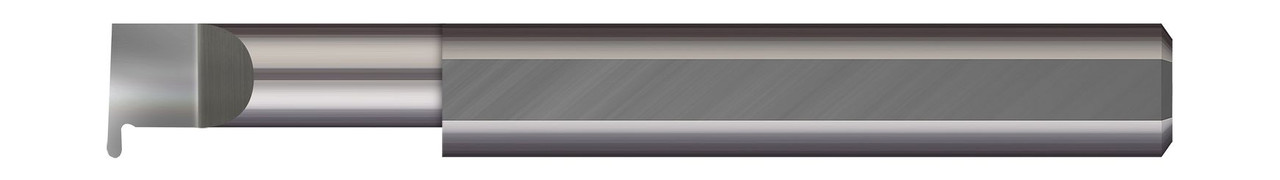

RIGHT HAND - 0.5000" (1/2) MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.1250" (1/8) TOOTH WIDTH X 0.1500" PROJECTION X 3.00" (3) OVERALL LENGTH X 0.0625" (1/16) RADIUS - ALTIN COATED,FR-125-8X
- SKU:
- FR-125-8X
- MPN:
- FR-125-8X
- Availability:
- Order by 3:00pm CST and your order will ship same day!
- Shipping:
- Calculated at Checkout
Description
0.5000" (1/2) MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.1250" (1/8) TOOTH WIDTH X 0.1500" PROJECTION X 0.5000" (1/2) SHANK DIA X 3.00" (3) OVERALL LENGTH X 0.0625" (1/16) RADIUS - CARBIDE FULL RADIUS GROOVING RIGHT HAND, ALTIN COATED,FR-125-8X
View AllClose
Additional Information
Min Bore Diameter: |
0.5220" |
Head Width: |
0.500" (1/2) |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.1500" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2500" (1/4) |
Radius: |
0.0625" (1/16) |
Face Dimension: |
0.250" (1/4) |
Neck Diameter: |
0.3450" |
Overall Length: |
3.00" (3) |
Split Length: |
0.275" |
Tooth Width: |
0.1250" (1/8) |
Metric: |
N |
