MICRO 100

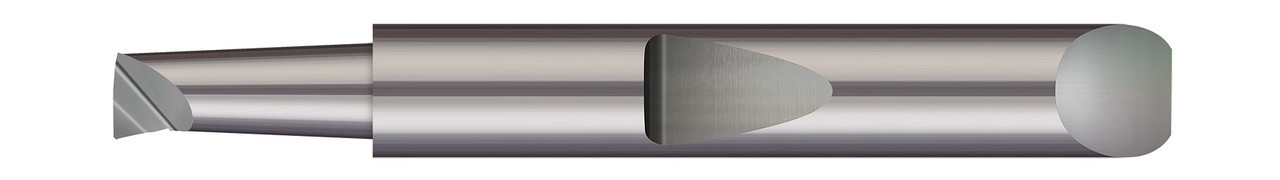

QUICK CHANGE - RIGHT HAND - 0.750" (3/4) MAX BORE DEPTH X 0.1150" TOOTH WIDTH X 0.0200" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.003" CORNER RADIUS - ALTIN COATED,QBM-150750X
- SKU:
- QBM-150750X
- MPN:
- QBM-150750X
- Availability:
- 23
- Shipping:
- Calculated at Checkout
Description
0.750" (3/4) MAX BORE DEPTH X 0.1150" TOOTH WIDTH X 0.0200" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.003" CORNER RADIUS - CARBIDE QUICK CHANGE - BORING HEAD TOOL RIGHT HAND, ALTIN COATED,QBM-150750X
View AllClose
Additional Information
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0200" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.0710" |
Corner Radius: |
0.003" |
Length from Holder: |
0.853" |
Neck Diameter: |
0.1360" |
Overall Length: |
2.00" (2) |
Rotational Min Bore Diameter: |
0.150" |
Tooth Width: |
0.1150" |
Metric: |
N |
