TITAN USA

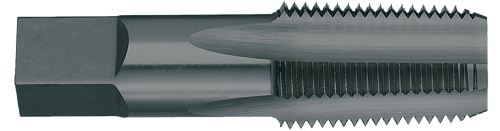

3/4-14 Size x 1.3750" (1-3/8) Thread Length x 0.9063" Shank DIA, High Speed Steel - 5 FL - Nitride & Steam Oxide Finish, TT93884
- SKU:
- TITUS1-TT93884
- Availability:
- Order by 3:00pm CST and your order will ship same day!
- Shipping:
- Calculated at Checkout
Description
3/4-14 SIZE X 1.3750" (1-3/8) THREAD LENGTH X 0.9063" SHANK DIA, HIGH SPEED STEEL TAPER PIPE TAP - NPT CAST IRON, 5 FLUTES, NITRIDE & STEAM OXIDE FINISH
View AllClose
Additional Information
Coating: |
NITRIDE & STEAM OXIDE |
Across Flat: |
0.6790" |
Flutes: |
5 |
Length of Cut: |
1.3750" (1-3/8) |
End Length: |
0.6875" (11/16) |
Shank Diameter: |
0.9063" |
Overall Length: |
3.2500" (3-1/4) |
Thread Size: |
3/4-14 |
Substrate: |
high speed steel |
Thread Type: |
NPT |
Metric: |
N |
