TITAN USA

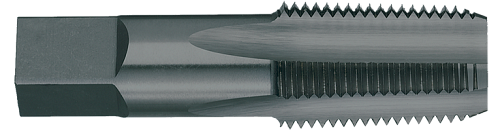

1/8-27 Size x 0.7500" (3/4) Thread Length x 0.4375" (7/16) Shank DIA, High Speed Steel - 4 FL - Nitride & Steam Oxide Finish, TT93880
- SKU:
- TITUS1-TT93880
- Availability:
- Order by 3:00pm CST and your order will ship same day!
- Shipping:
- Calculated at Checkout
Description
1/8-27 SIZE X 0.7500" (3/4) THREAD LENGTH X 0.4375" (7/16) SHANK DIA, HIGH SPEED STEEL TAPER PIPE TAP - NPT CAST IRON, 4 FLUTES, NITRIDE & STEAM OXIDE FINISH
View AllClose
Additional Information
Coating: |
NITRIDE & STEAM OXIDE |
Across Flat: |
0.3280" (21/64) |
Flutes: |
4 |
Length of Cut: |
0.7500" (3/4) |
End Length: |
0.3750" (3/8) |
Shank Diameter: |
0.4375" (7/16) |
Overall Length: |
2.1250" (2-1/8) |
Thread Size: |
1/8-27 |
Substrate: |
high speed steel |
Thread Type: |
NPT |
Metric: |
N |
