TITAN USA

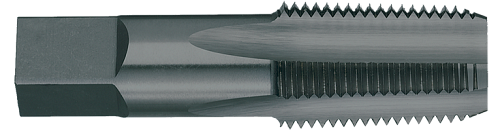

1/2-14 Size x 1.3750" (1-3/8) Thread Length x 0.6875" (11/16) Shank DIA, High Speed Steel - 4 FL - Nitride & Steam Oxide Finish, TT93883
- SKU:
- TITUS1-TT93883
- Availability:
- Order by 3:00pm CST and your order will ship same day!
- Shipping:
- Calculated at Checkout
Description
1/2-14 SIZE X 1.3750" (1-3/8) THREAD LENGTH X 0.6875" (11/16) SHANK DIA, HIGH SPEED STEEL TAPER PIPE TAP - NPT CAST IRON, 4 FLUTES, NITRIDE & STEAM OXIDE FINISH
View AllClose
Additional Information
Coating: |
NITRIDE & STEAM OXIDE |
Across Flat: |
0.5150" (33/64) |
Flutes: |
4 |
Length of Cut: |
1.3750" (1-3/8) |
End Length: |
0.6250" (5/8) |
Shank Diameter: |
0.6875" (11/16) |
Overall Length: |
3.1250" (3-1/8) |
Thread Size: |
1/2-14 |
Substrate: |
high speed steel |
Thread Type: |
NPT |
Metric: |
N |
