TITAN USA

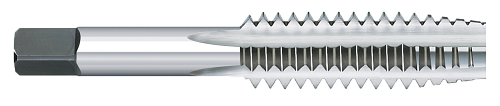

1-1/4-8 Size x 2.5625" (2-9/16) Thread Length x H5 Limit x 1.0210" Shank DIA, High Speed Steel - Plug - 4 FL - Uncoated, TT90705
- SKU:
- TITUS1-TT90705
- Availability:
- Order by 3:00pm CST and your order will ship same day!
- Shipping:
- Calculated at Checkout
Description
1-1/4-8 SIZE X 2.5625" (2-9/16) THREAD LENGTH X H5 LIMIT X 1.0210" SHANK DIA, HIGH SPEED STEEL HAND TAP - 8 PITCH - PLUG, 4 FLUTES, UNCOATED
View AllClose
Additional Information
Coating: |
UNCOATED |
Across Flat: |
0.7660" |
Flutes: |
4 |
Length of Cut: |
2.5625" (2-9/16) |
End Length: |
1.0000" (1) |
Shank Diameter: |
1.0210" |
Limit: |
H5 |
Overall Length: |
5.7500" |
Thread Size: |
1-1/4-8 |
Substrate: |
high speed steel |
Metric: |
N |
